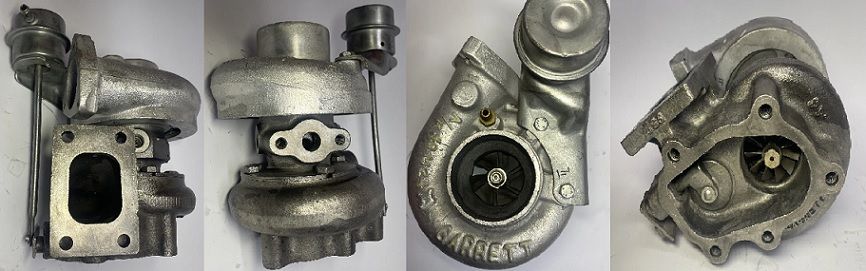

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)Nissan 200SX TB2525 Turbo 465795-0001
Product Description
| Part Number | 465795-0001 |
| OE Number | 1441144F00, 1441144F01, 14411-44F00, 14411-44F01 |
| Description | Nissan 200SX Turbo |
| CHRA | 431876-0021 $338.00 NEW IN STOCK, MADE IN USA |
| Turbo Model | TB2525 |
| Engine | CA18DT |
| Engine Manufacturer | Nissan |
| Displacement | 1.8L, GAS, 1809 ccm |
| Power | 169 HP |
| Angle α (compressor housing) | 183º |
| Angle β (turbine housing) | 167º |
| Bearing Housing | 479802-0002 $58.40 |
| Turbine Wheel | 435922-0001 $101.80 |
| Comp. Wheel | 431350-0015 $65.00 |
| Back plate | 432280-0001 $6.84 |
| Heat shield Number | 431055-0003 $13.84 |
| Repair Kit | 709143-0001 $69.00 |
| Turbine Housing | 430609-0328 |
| Compressor Cover | 409589-0085/431963-0017 |
| Turbine Housing AR | 0.64 |
| Actuator | 430819-0079 |
| Settings waste gate (pressure) | 0.74-0.84/1.27-1.30 bar |
| Settings Waste gate (lift shaft) | 0.38/4.00 mm |
| Gasket (turbine inlet) | 210218 |
| Gasket (turbine outlet) | 210269 |
| Gasket (oil outlet) | 413709-0001 |
| Replaced By | 465795-0004 |
| Manufacturer | Honeywell-Garrett |
Nissan 200SX Turbo with CA18DT Engine There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
