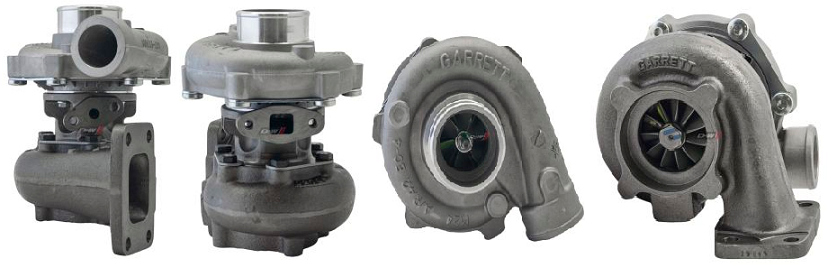

1992- Perkins Industrial TA3123 Turbo 466674-0004

Item# turbo-industrial-perkins-TC-466674-0004
$1,577.36
Availability: Usually ships the next business day

Product Description


Part Number 466674-5004S
Previous Version 466674-0004, 466674-9004, 466674-4, 466674-0006
OE number0R9512, 118-8384, 1188384, 2674400, 2674A301, U2674A301
DescriptionCaterpillar 3054, Perkins 1004-4T, Industrial Perkins, Cat 1000 series
Turbo ModelTA3123
CHRA409172-0052 (409172-9052S)(6I4203)(1100030901) $300.00 NEW IN STOCK, MADE IN USA
Displacement4 Cylinders
FuelDiesel
Engine 1004
KW112 HP
Angle α (compressor housing)180º
Angle β (turbine housing)120º
Bearing Housing430027-0025 (312379, 407285-0027, 407285-0038, 430027-0022, 430027-0048)(Oil Cooled)(1100030450, 1900011104B) $69.00 NEW IN STOCK
Turbine Wheel451314-0001 (Ind. 50.5 mm, Exd. 64. mm, Trm 62, 11 Blades)(1100030439) $186.14 NEW IN STOCK
Comp. Wheel409096-0008 (197611)(103016-0000, 409096-0001)(Ind. 40.51 mm, Exd. 60.09 mm, Trm 5.15, 6+6 Blades, Superback)(1100030401, 1200030071) $54.32 NEW IN STOCK
Back plate 409629-0004 (197340)(1100030301, 1300016007) $17.00 NEW IN STOCK
Heat shield Number409627-0000 (103121-0000, 409627-0001, 311131)(1100030340) $14.80 NEW IN STOCK
Repair Kit468139-0000 (79087623)(1100030765, 5000010041) $69.50 NEW IN STOCK
Turbine Housing409526-0002
Compressor Cover409115-0127 (311629) $39.12
Turbine Housing AR0.48
Gasket (turbine inlet)409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006) (Inox Steel) $13.52
Gasket oil inlet 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) $4.48
Gasket (oil outlet)210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32
ManufacturerHoneywell-Garrett

Applications

1992- Perkins, Cat 1000 series Industrial Engine 1004

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
