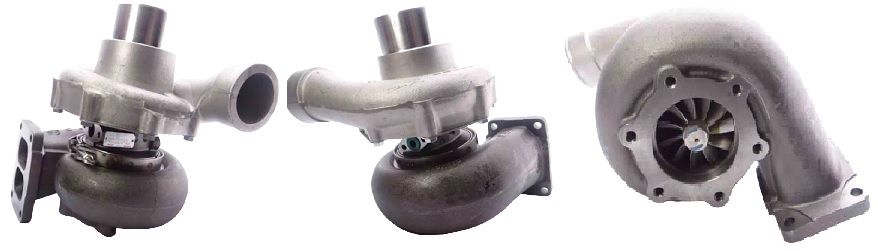

1984- Perkins Industrial Gen Set TA5104 Turbo 466478-0012

Item# turbo-industrial-perkins-TC-4664785012S
$1,468.00
Availability: Usually ships the next business day

Product Description


Part Number466478-5012S
Previous Version466478-0012, 466478-0013, 466478-0014, 466478-12
OE numberCV13727/1Z, CV13727
DescriptionRolls Royce, Perkins Shrewsbury IND. Gen Set, Military Offhighway
CHRA441398-0036 (441398-5036S, 441398-0082)(1000010166) $390.00 NEW IN STOCK, MADE IN USA
Turbo ModelTA5104
EngineCV12TCA
Engine Manufacturer Rolls Royce
Fuel Diesel
Angle α (compressor housing)360º
Angle β (turbine housing) 360º
Bearing Housing410310-0001 (311548, 410310-0004)(1900011222) $66.00 NEW IN STOCK
Turbine Wheel441194-0001 (314407, 441194-0008)(Ind. 88.9 mm, Exd. 77.67 mm, Trm 12.64, 11 Blades)(1100016048) $116.00 NEW IN STOCK
Comp. Wheel441792-0011 (441792-0029)(Ind. 67.13 mm, Exd. 90.95 mm, Trm 5.3, 6+6 Blades, Superback)(1200016255) $58.42 NEW IN STOCK
Back plate442752-0002 (441104-0002)(199646)(1300016014B) $31.24 NEW IN STOCK
Heat shield Number410366-0004 (197394)(410366-0003, 410366-0007)(2030016004) $17.58 NEW IN STOCK
Repair Kit468132-0000 (468132-0002, 3545829, 468132-0008)(1100045753, 5000010045B) $86.80 NEW IN STOCK
Turbine Housing441065-0003
Compressor Cover443209-0027
Turbine Housing AR1.54
Gasket (turbine inlet)409038-0000 (132040, 210017-0000) $15.49
Gasket (turbine outlet)210239 (Stainless Steel) $22.00
Gasket oil inlet210019 (409266-0004, 210019-0000, 201049, 129119, 409266-0003) $4.40
Gasket (oil outlet)210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585, 2475013) $4.48
Gasket Kit215025 (2090505017)
ManufacturerHoneywell-Garrett

Applications

1984- Perkins Shrewsbury Industrial Generator Engine CV12TCA

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
