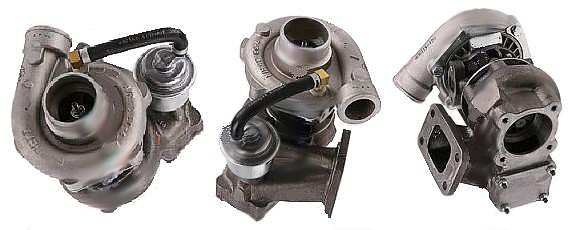

Perkins Industrial Tractor TA0315 Turbo 466778-0003

Perkins Industrial Tractor TA0315 Turbo 466778-0003
Item# turbo-industrial-perkins-TC-4667785003S
$1,042.42
Availability: Usually ships the next business day

Product Description


Part Number 466778-5003S
Previous Version466778-0004
OE number 2674A106, 5000822006, 5000249736,
Turbo Model TAO315
Engine T4.236, T4.38
CHRA409853-0042 (409853-5042S, 409172-0077) $300.00 NEW IN STOCK, MADE IN USA
Fuel Diesel
Displacement3.9L, 3860 ccm, L-4 Cylinders
Angle α (compressor housing 180°
Angle β (turbine housing)108°
Bearing Housing430027-0025/430027-0022 (186879, 186881)(1100030450)(Oil Cooled) $55.20 NEW IN STOCK
Turbine Wheel451310-0001 (409392-0021) (Ind. 45.75 mm, Exd. 65. mm, Trm 50, 11 Blades) $127.20 NEW IN STOCK
Comp. Wheel409096-0008/409096-0014 (197611, 103016-0000)(Ind. 40.5 mm, Exd. 60.1 mm, Trm 45, Superback, 6+6 Blades) (1100030401) $60.40 NEW IN STOCK
Back plate409629-0003/409629-0004/409629-0001 (1100030300) $38.00 NEW IN STOCK
Heat Shield409627-0000 (1100030340, 103121-0000) $11.80 NEW IN STOCK
Turbine Housing410224-0024
Compressor Cover409589-0440/409115-0129
Turbine Housing AR0.36
Actuator N/A
Actuator Gasket409262-0000 $19.50
Gasket (turbine inlet)409039-0000 (409039-0001, 210019, 2405022) $13.52
Gasket (turbine outlet)210225 (Stainless Steel)
Gasket oil inlet210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) $4.48
Gasket (oil outlet)210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32
Replaced By466778-0004
ManufacturerHoneywell-Garrett

Applications

Perkins Industrial Engine With T4.236, T4.38 Engine

Renault Industrial Engine

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
