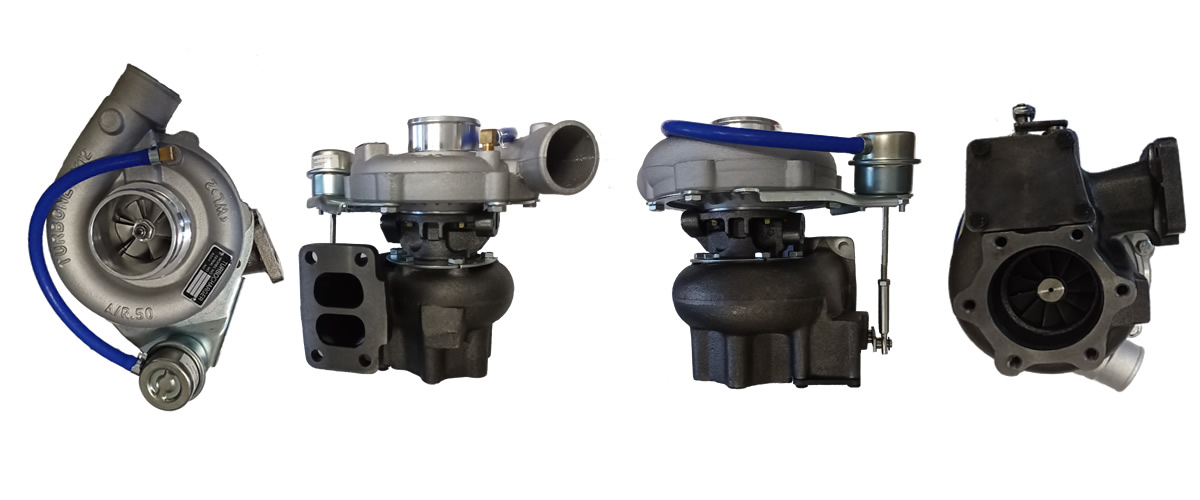

1992- Perkins Industrial TBP412 Turbo 452071-0002

1992- Perkins Industrial TBP412 Turbo 452071-0002
Item# turbo-industrial-perkins-TC-4520715002S
$1,590.00
Availability: Usually ships the next business day

Product Description


Part Number452071-5002S
Previous Version452071-0002, 452071-2
OE numberSAB33068
DescriptionIndustrial, Marine
CHRA447450-0046 (447450-5046S) $450.00 NEW IN STOCK, MADE IN USA
Turbo ModelTBP412
EngineT6.60 210T, T6.60, M22Ti
FuelDiesel
Angle a (compressor housing)295º
Angle ß (turbine housing)90º
Bearing Housing430027-0022 (312379, 407285-0027, 407285-0038, 407285-0064, 430027-0025, 430027-0048)(1100030450, 1900011104B)(Oil Cooled) $55.20 NEW IN STOCK
Turbine Wheel446905-0006 (407276-0017, 407276-0020, 410188-0004, 451309-0001)(Ind. 52.30 mm, Exd. 73. mm, Trm 81, 11 Blades) $179.00 NEW IN STOCK
Comp. Wheel442293-0006 (1810440C1)(Ind. 47.4 mm, Exd. 75. mm, Trm 40, 6+6 Blades) $95.00 NEW IN STOCK
Back plate 408045-0031 (408045-0030, 408045-0038, 408045-0039, 408045-0040)(ME078204)(1300016006) $21.00 NEW IN STOCK
Heat shield Number409299-0001 (311607, 409299-0000) $15.00 NEW IN STOCK
Repair Kit468265-0000 (468265-0000UK, 3545831)(1100040760, 5000010041) $69.50 NEW IN STOCK
Turbine Housing413889-0002
Compressor Cover409589-0354 (445069-0008)
Turbine Housing AR0.70
Actuator432340-0015
Settings Waste gate adjustment (pressure)1.170-1.270 bar
Settings Waste gate (lift shaft)1.00 mm
Gasket (turbine Outlet)409196-0001 (210226) $17.71
Gasket oil inlet210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) (Paper) $4.48
Gasket (turbine outlet)210021 (210023-0000, 147837, 210023, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500) $4.48
ManufacturerHoneywell-Garrett

Applications

1992- Perkins Marine, Industrial Engine T6.60 210T

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
