Home > Force Inductions > TURBO CHARGERS > AGRICULTURAL/TRACTORS > SAME > Same Astr Tractor Agricultural TA2502 Turbo 465477-0001

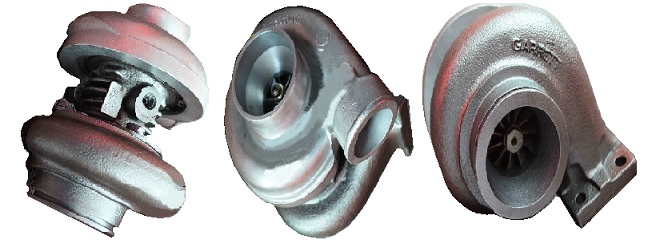

Same Astr Tractor Agricultural TA2502 Turbo 465477-0001

Same Astr Tractor Agricultural TA2502 Turbo 465477-0001
Item# turbo-agricultural-john-deere-TC-4654770001
$1,650.00
Availability: Usually ships the next business day

Product Description


Part Number465477-5001S
Previous Version465477-0001, 465477-1
OE number0.013.7254.4, 7072041, 70720.4
DescriptionAstr Tractor
Turbo ModelTA2502
Engine1000.3AT, 1000.3WT, 1000 3 WT
CHRA 443854-0061 (443854-5061S) $450.00 NEW IN STOCK
Engine ManufacturerSame
KW70
Displacement2.9L, 2900 ccm
Fuel Diesel
Angle α (compressor housing)339°
Angle β (turbine housing)8°
Bearing Housing435349-0012 (Oil Cooled) $89.00 NEW IN STOCK
Turbine Wheel435257-0005 (435257-0002, 435257-0003, 435737-0004)(Ind. 52.8 mm, Exd. 39.32 mm, 11 Blades)(1100025436) $90.80 NEW IN STOCK
Comp. Wheel431350-0018 (Ind. 34.45 mm, Exd. 52. mm, Trm 44, 8+8 Blades) $111.50 NEW IN STOCK
Back plate430735-0001 (430612-0003)(1100025300) $21.80 NEW IN STOCK
Heat shield Number431055-0001 (431055-0003) $13.84 NEW IN STOCK
Repair Kit709143-0001 (200423-0000, 707903-0002)(1100025761) $69.00 NEW IN STOCK
Turbine Housing432883-0002
Compressor Cover431022-0008
Turbine Housing AR0.68
Gasket (turbine inlet)210218 (Stainless Steel) $14.90
Replaced By316694, 312928, 311830, 56101970000
ManufacturerHoneywell-Garrett

Applications

Same Astr Tractor Agricultural Tractor with 1000.3AT, 1000.3WT Engine

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
