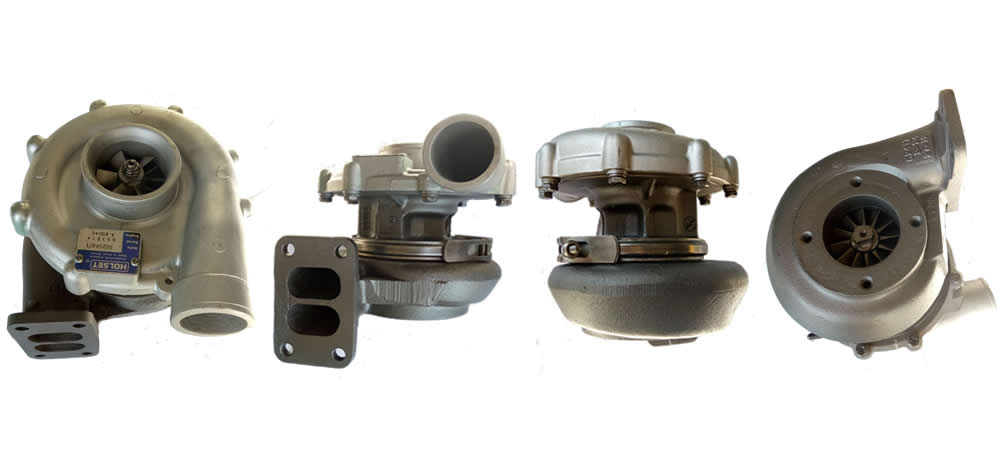

1978-03 Sabre Marine 3LD Turbo 3502596

1978-03 Sabre Marine 3LD Turbo 3502596
Item# turbo-marine-sabre-TC-3502596
$1,978.53
Availability: Usually ships the next business day

Product Description


Part Number3502596
OE numberA49046, B49300
DescriptionMarine
CHRA54438 (53414, 53473, 50846, 143019-0000)(1150403700) $1,050.42 NEW IN STOCK
Turbo Model 3LD, 3LD9/2.24
EngineFord 360 (6 CYL), 2704 ET
Engine ManufacturerSabre
Displacement6.6L, 6600 ccm , 6 Cylinders
KW250
FuelDiesel
Angle α (compressor housing) 90°
Angle β (turbine housing) 360°
Bearing Housing186654 (51543, 53282, 182065, 186774)(1150403450) $325.87
Turbine Wheel156689 (149403, 156689, 55791, 156656, 143013-0000)(Ind. 61.00 mm, Exd. 75.53 mm, 12 Blades)(1250403435) $578.15
Comp. Wheel146595 (51220, 147620, 183199, 51220, 143217-0000, 52221232007)(Ind. 52.02 mm, Exd. 82.53 mm, 6+6 Blades, Flatback)(1250403425) $144.24
Back plate197651 (51135, 5S4556, 142066, 49162-22500, 52321523000, 52321523001, 143044-0000)(1250403300) $53.33 NEW IN STOCK
Repair Kit318364 (3545658, 3545655)(1150403754) $94.00 NEW IN STOCK
Turbine Housing AR3
ManufacturerHOLSET

Applications

1978-03 Sabre Marine with Ford 360 (6 CYL) Engine

Core Charge

There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
