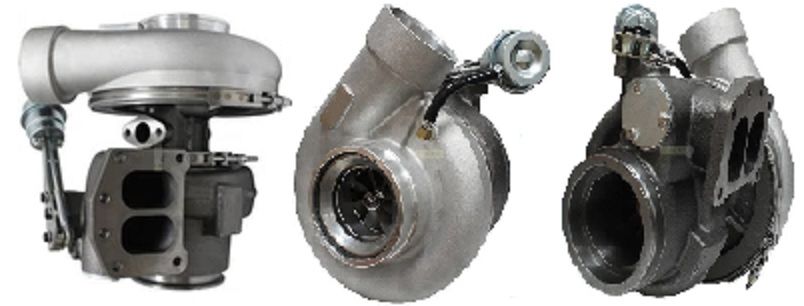

1999-11 Scania 164 DC16.01 Truck HX60W Turbo 4045531D

Item# turbo-truck-scania-TC-4045531D
$1,998.57
Availability: Usually ships the next business day

Product Description


Part Number4045531-D
Previous Version4045533, 3594549-D, 4045531, 3591225, 3594549, 4045531, 4045533, 4045533RS, 3594550
Regenerated3594549, 4031128, 4031128H, 1422955
OE number 574370, 1446732, 1473044
DescriptionScania 164 DC16.01, Truck Series 4
Manufacturer Part Number3594550, 3591226, 4045533, 4045533RS
CHRA4027257 (1000020155) $550.00 NEW IN STOCK
Turbo Model HX60W-0988K/AV27LA1A , HX60W
Application 164
EngineDC16-01, DC16-01 Euro-4, 574370
Engine Manufacturer Scania
Displacement16.0L, 15600 ccm, V8 Cylinders
FuelDiesel
KW 420/580 HP
Source Reference1446732
Lock nut,turbine shaft3519535
Angle α (compressor housing)159°
Angle β (turbine housing)67°
Bearing Housing3536009 (Oil Cooled)(1900011279B) $236.60 NEW IN STOCK
Turbine Wheel3532198 (3532198H, 353219800)(Ind. 76. mm, Exd. 109. mm, Trim 49, 11 Blades)(1100016368) $245.70 NEW IN STOCK
Comp. Wheel3531538 (Ind. 76. mm, Exd. 109. mm, Trm 17.11, 8+8 Blades, Superback)(1200016513) $185.31 NEW IN STOCK
Back plate 3531917 (1800016077, 1250403300) $37.06 NEW IN STOCK
Heat shield Number3519155 (3758538, 18373, 351915500)(2030016126) $15.58 NEW IN STOCK
Repair Kit4027881 (3545345, 3580568, 4027880)(1153060750, 5000020019) $125.00 NEW IN STOCK
Turbine Housing4045538
Compressor Cover3592352
Gasket (turbine inlet)409038-0000 (132040, 52231083002) $17.21
Gasket (oil outlet)210018 (129120,210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(Paper)(1900000025) $4.38
Replaced by 4045531
ManufacturerHOLSET

Applications

1999-11 Scania 164 DC16.01 Truck Series 4 with 574370 Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
