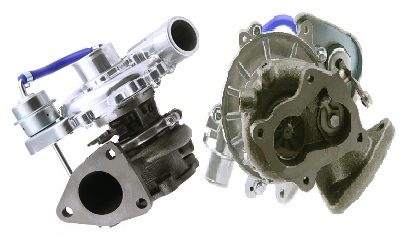

Toyota Land Cruiser, Hi-Lux CT12B Turbo 17201-30120

Toyota Land Cruiser, Hi-Lux CT12B Turbo 17201-30120
Item# turbo-car-Toyota-TC-1720130120
$883.00
Availability: Usually ships the next business day

Product Description


Part Number17201-30120
Previous 17201-30120, 1720130120
OE Number 17201-30080, 1720130080
Description Land Cruiser, Hi-Lux
CHRA17202-30030 (1500316900, 1000060120) $295.00 NEW IN STOCK, MADE IN USA
Turbo ModelCT, CT16
Engine 2KD-FTV
Engine Manufacturer Toyota
Displacement 2.5L, 2494 ccm, 4 Cylinders
KW88/122
FuelDiesel
Engine2KD-FTV
Bearing Housing(Oil Cooled)(1500316450, 1900011267) $66.00 NEW IN STOCK
Turbine Wheel17290-30120 (Ind. 45.89 mm, Exd. 38. mm, Trm 6.55, 9 Blades)(1500316431, 1100016280) $76.00 NEW IN STOCK
Comp. Wheel17298-30120 (Ind. 35.96 mm, Exd. 50.95 mm, Trm 4.77, 6+6 Blades, Superback)(1500316400, 1200016390) $36.80 NEW IN STOCK
Back plate(1500316300, 1300016056B) $19.90 NEW IN STOCK
Heat Shield(1500316340, 2030016121) $14.00 NEW IN STOCK
Repair Kit(1500316755, 5000070023) NEW IN STOCK
Actuator (2061016691) $49.98
Gasket (turbine inlet)210354 (Inox Steel) $21.00
Gasket (turbine outlet)210355
Gasket (oil inlet and outlet)210234 (Paper)(1500320790) $11.00
Gasket (water inlet and outlet)210233 (Paper)(1500320791) $3.00
Gasket Kit17230-39085 (2090505196)
ManufacturerToyota

Applications

Toyota Land Cruiser, Hi-Lux with 2KD-FTV Engine

Core Charge

There is a $00.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
