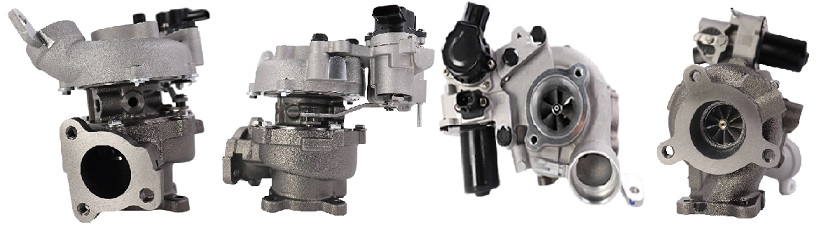

2007-12 Toyota 200 series Land cruiser C-Rail RHV4 Turbo VED20027 VB23

Item# turbo-car-toyota-TC-VED20027
$1,663.06
Availability: Usually ships the next business day

Product Description


Part Number VED20027
Previous VersionVAD20027, VBD20027, VCD20027, VDD20027
OE Number17208-51010, 17208-51011, 17201-78032, 1720178032
V-SPEC.VB23, VB37
DescriptionToyota Land Cruiser AWD Closed Off-Road Vehicle D-40 V8 200 Series , Toyota 200 series Land cruiser C-Rail, 508F(NO2)Twin Turbos
CHRA$350.00 NEW IN STOCK, MADE IN USA
Turbo ModelRHV4-720010P15NMXBRS389CD, RHV4
Engine Manufacturer Toyota
Engine 508F(NO2), 1VD-FTV VDJ76/78/79
Displacement4.5L, 4500 ccm, V8 1963.06
FuelDiesel
KW195
Angle α (compressor housing) 95º
Angle β (turbine housing) 199.5°
Repair Kit$81.00 NEW IN STOCK
NOTE Twin Turbocharged & Inter cooled (twin turbo V8, Left Side Turbo)
ManufacturerIHI

Applications

2007-12 Toyota 200 series Land cruiser C-Rail with 1VD-FTV VDJ76/78/79 Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
