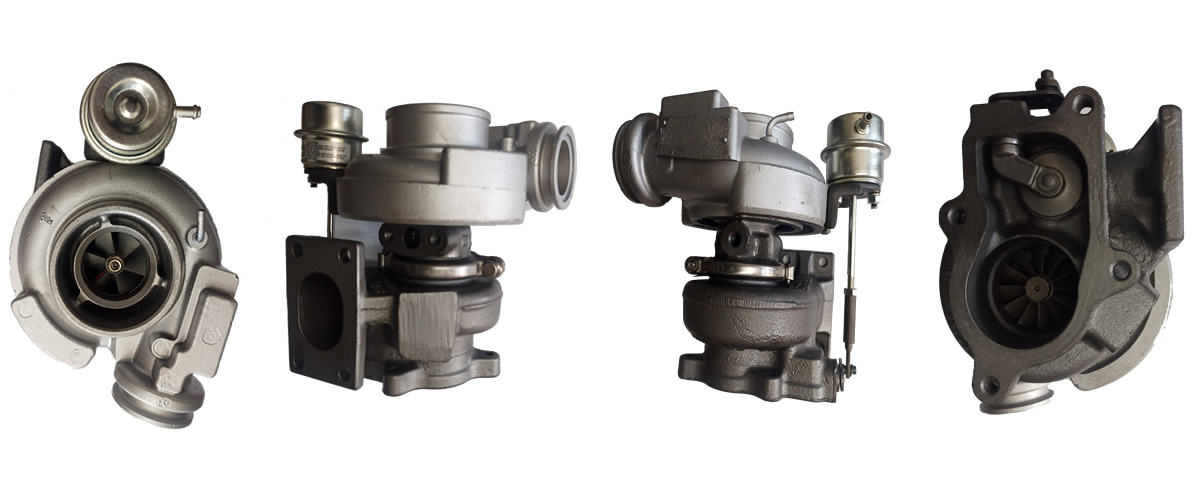

2002- Cummins Industrial Engines HX27W Turbo 3594360

2002- Cummins Industrial Engines HX27W Turbo 3594360
Item# TC-HX27W-3594360
$1,119.83
Availability: Usually ships the next business day

Product Description


Part Number3594360
New Part Number 3594361, 3594361H
OE number4025329
CHRA 3593380 (3593380H, 49189-08052, 49189-08053)(1153027900, 1000020157) $300.00 NEW IN STOCK, MADE IN USA
DescriptionEngine Cummins ISBe-150 KAVZ-4235
Turbo ModelHX27W-GKB13F/A06BXL, HX27W
Engine ManufacturerCummins 3.9L
Engine ModelDSV, ISBe
Displacement3.9L, 3900 ccm
KW 150
FuelDiesel
Bearing Housing49189-26400 (Oil Cooled)(1900011200E) $62.00 NEW IN STOCK
Turbine Wheel49189-30100 (Ind. 45.64 mm, Exd. 51.57 mm, 12 Blades)(1100030028) $90.00 NEW IN STOCK
Comp. Wheel49377-00017 (49189-43400)(Ind. 43.51 mm, Exd. 61. mm, 6+6 Blades, Superback)(1200016516) $49.62 NEW IN STOCK
Back plate49135-00044 (1800016016) $15.94 NEW IN STOCK
Heat shield Number49183-19300 (2030016085) $14.64 NEW IN STOCK
Repair Kit(5000050007) NEW IN STOCK
Gasket (turbine inlet)210218
Gasket (turbine outlet)210889
Gasket (oil outlet)210243 $4.40
ManufacturerHOLSET

Applications

2002- Cummins Industrial Engines, Bus, With DSV Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
