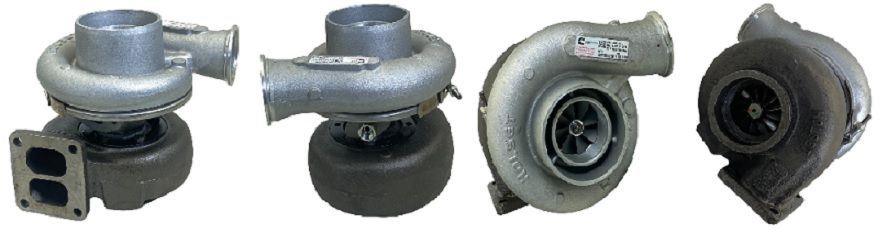

1989-09 Cummins Industrial, Freightliner, Railway H1E Turbo 3528708

Item# turbo-industrial-cummins-TC-3528708
$1,891.20
Availability: Usually ships the next business day

Product Description


Part Number3528708
Previous Part Number3528709M 352870900, 3528709H, 3528872, 3528873, 3535546, 3535547, 3535548, 3535549, 3535550, 3535551, 3535576, 3536687, 3536688
OE number3802345, 3802345NX, 3802345RX
DescriptionRailway, Cummins Freightliners
Manufacturer Part Number3920829
CHRA3545988 (3575059, 3545988H, 5451482, 5451482H)(1000020148) $300.00 NEW IN STOCK, MADE IN USA
Turbo ModelH1E-8294BK/FA22SA8, H1E
KW240/250 HP
Engine Model6CTA
Displacement 8.3L, 8300 ccm
FuelDiesel
Angle α (compressor housing)15/20/90/138/222º
Angle β (turbine housing)177/233/262/270/282/312/315/345º
Bearing Housing3530591 (3500591, 3500592, 3530592)(Oil Cooled)(1152301450, 1900011017) $47.00 NEW IN STOCK
Turbine Wheel3535359 (3519892, 3522879)(Ind. 75.92 mm, Exd. 64. mm, Trm 10.41, 12 Blades)(1100030008) $128.00 NEW IN STOCK
Comp. Wheel3599642 (Ind. 60. mm, Exd. 81.73 mm, Trm 10.99, 8+8 Blades, Superback)(1152301401, 1200016068) $37.00 NEW IN STOCK
Back plate3522801 (167543)(1300016005) $26.20 NEW IN STOCK
Heat shield Number 3519302 (3519304, 167550)(1152301340, 2030016031) $14.00 NEW IN STOCK
Repair Kit3545652 (4027309)(3802148, 318393)(1152301750, 5000020014) $74.00 NEW IN STOCK
ManufacturerHOLSET

Applications

1989-09 Cummins Industrial Railway with 6CTA Engine

1989-09 Cummins Freigthliner, Truck with 6CTA Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
