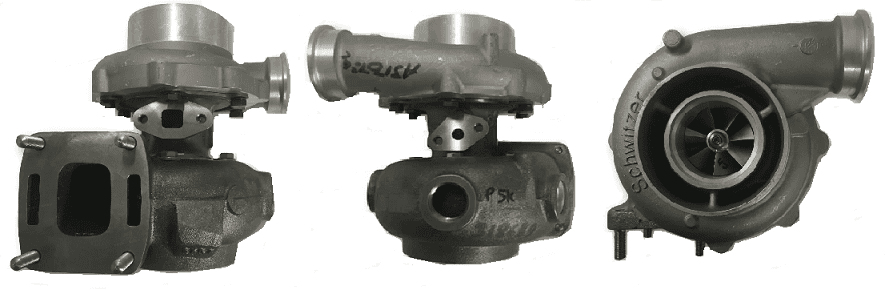

2001-02 Deutz Industrial Engine S200W Turbo 318694

2001-02 Deutz Industrial Engine S200W Turbo 318694
Item# TC-S200W-318694
$1,625.00
Availability: Usually ships the next business day

Product Description


Part Number318694
OE number04260899KZ, 4260899KZ, 04260899, 4260899
Year2001-02
DescriptionIndustrial Engine
Turbo ModelS200W
CHRA 318695 $981.65 NEW IN STOCK
Manufacturer Part number318510
Engine ModelBF6M1015C
Displacement11.91L, 11910 ccm
KW330/443
RPM 2100
FuelDiesel
Angle α (compressor housing)252°
Angle β (turbine housing)0°
Bearing Housing167994 (Oil Cooled) $269.14 NEW IN STOCK
Turbine Wheel168431 (Ind. 55.95 mm, Exd. 69.6 mm, Trm 10.57, 10 Blades)(1253200436) $180.00 NEW IN STOCK
Comp. Wheel169937 (Ind. 53.25 mm, Exd. 76.3 mm, Trm 6.46, 7+7 Blades, Superback) $73.60 NEW IN STOCK
Back plate167744 (166537)(1253200300)(304020003) $19.00 NEW IN STOCK
Heat shield Number167997 $23.51 NEW IN STOCK
Repair Kit318383 (318394, 169032, 169636)(1253200750)(309200001) $97.60 NEW IN STOCK
Turbine Housing318689
Compressor Cover318734
Gasket (turbine inlet) single entry312617 (409039-0001, 210190-0000, 132044) $13.20
Gasket (oil outlet) 311496 (409037-0000, 210021-0000, 413671-0000, 3519807, 210021, 210021) $4.32
Gasket (oil inlet)147837 (409036-0000, 210023-0000, 55739, 210023) $4.32
Replaced BY318510
ManufacturerBorg Warner - 3K - Schwitzer

Applications

2001-02 Deutz Industrial Engine BF6M1015C

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
