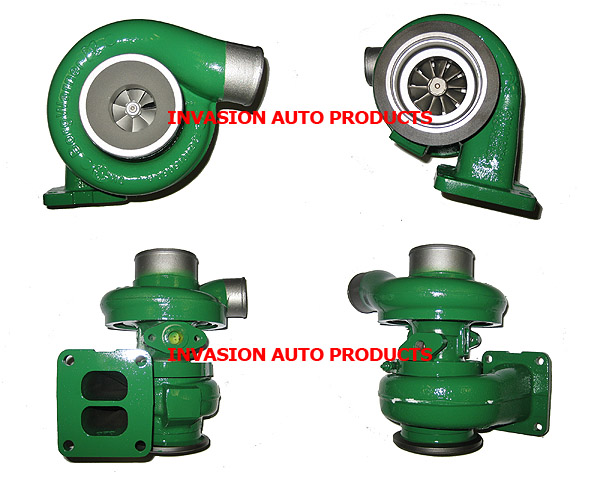

2000-12 John Deere Industrial Gen Set S2A Turbo 318615

2000-12 John Deere Industrial Gen Set S2A Turbo 318615
Item# TC-S2A-318615
$751.52
Availability: Usually ships the next business day

Product Description


Part Number318615
Previous Version318570, 174735
Interchangeable RE503097, RE508876, RE508877, RE508971, RE509818, RE59379, RE59997, RE59999, RE60069, RE60076, RE67647, RE70995
OE numberRE508971, RE509818, RE523366, RE508973, 3990023112
Interchangeable Turbo Part OE No471049-0001, 471049-0002, 471049-0003, 471049-0006, 471049-0008, 471049-9001, 471049-9004
Year2000-12
DescriptionGen Set
Manufacturer Part Number318570, 418570
CHRA318613 (1000070100) $300.00 NEW IN STOCK
Interchangeable CHRA446311-0006
Turbo ModelS2A, S2A090, K27-112
Engine Model4045 & 4045T
Displacement4.5L, 4500 ccm
KW102/137
FuelDiesel
Angle α (compressor housing24°
Angle β (turbine housing) 0°
Bearing Housing 318609 (Oil Cooled)(1900011197) $125.44 NEW IN STOCK
Turbine Wheel314653 (Ind. 52.8 mm, Exd. 61. mm, Trm 9.66, 10 Blades)(1100016532, 301030001, 1228000015) $1333.57 NEW IN STOCK
Comp. Wheel197611 (409096-0008)(Ind. 38.1 mm, Exd. 60.95 mm, Trm 13.37, 6+6 Blades, Billet)(1200016743) $49.40 NEW IN STOCK
Back plate197340 (166537, 408045-0041)(1800016020) $16.76 NEW IN STOCK
Heat shield Number193975 (49168-18900)(1352346) $18.50 NEW IN STOCK
Repair Kit318477 (1252102750) $97.20 NEW IN STOCK
Turbine Housing318567
Compressor Cover317367
Gasket (turbine inlet)407294-0001 (310694, 312617)(303031063) $14.76
Gasket (oil outlet)210021 (148062, 210021-0000, , 311496, 3519807, 409037-0000, 413671-0000)(1900000027) $3.32
Gasket Kit318418 $16.60
Replaced By318614
ManufacturerBorg Warner - 3K - Schwitzer, cz

Applications

2000-12 John Deere Industrial Gen Set With 4045T Engine

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
