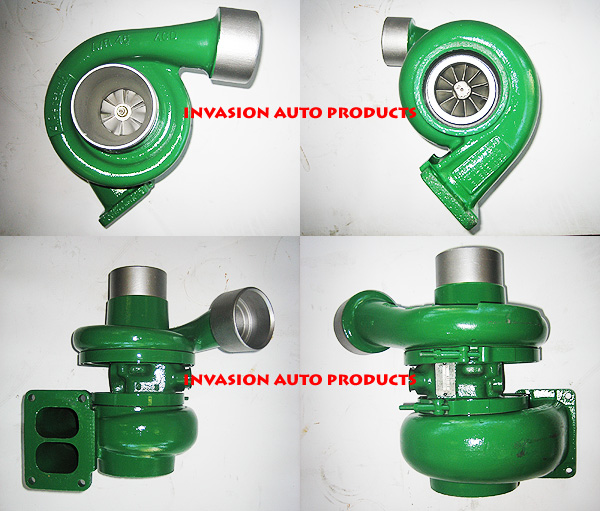

2000- John Deere Tractor 8650 Agricultural 4LF50 Turbo 193281

2000- John Deere Tractor 8650 Agricultural 4LF50 Turbo 193281
Item# turbo-agricultural-john-deere-TC-193281
$1,695.00
Availability: Usually ships the next business day

Product Description


Part Number 193281
Previous versions 188135
OE numberAR97634, AR101537, 193281, RE11593, AR76693, AR77772, RE22640
DescriptionTractor 8650, 8640, Excavator 8650A
Manufacturer Part Number188135, 465356-0001, 465320-0005
CHRA193282 $980.00 NEW IN STOCK
Turbo Model 4LF-50
Engine6619A, 6619
Bearing Housing 159504 $183.32 (5S4543, 0R5406, 4N9540)(408495-0009, AR73129, 4062624)(Oil Cooled) $183.32 NEW IN STOCK
Turbine Wheel184432 (0R5392, 9S8993)(Ind. 91.44 mm, Exd. 78.58 mm, 10 Blades) $175.00 NEW IN STOCK
Comp. Wheel188591 (183879)(Ind. 62.46 mm, Exd. 93.98 mm, 7+7 Blades, Billet, Flatback) $60.00 NEW IN STOCK
Back plate 197651 (49162-22500, 143045-0000, 51135, 5S4556, 142066, 52321523000, 52321523001)(1250403300) $19.50 NEW IN STOCK
Heat shield Number 188086 (148046)(4N9556) $19.50 NEW IN STOCK
Repair Kit318350 (311603, 188201-0000, 6N7245) $119.21 NEW IN STOCK
Turbine Housing188199
Compressor Cover159959
Gasket (turbine inlet)409038-0000 (132040, 210017-0000, 52231083002)(1900000003) $17.21
Gasket oil inlet129119 (210019, 201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 129120)(417378 Replaced by 420641)(1900000035) $4.38
Gasket (oil outlet)210018 (210018-0000, 129120, 409267-0002, 201048, 157602, 3037537, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) $4.38
Gasket Kit129119 (409266-0003, 201049, 1S6595, 3819900, 9737, 210019-0000)(1900000035) $4.22
Interchange with 465356-0002, 465320-0005
NOTEIt might replace and fit John Deere Agricultural Tractor 8650, 8640, Earth Moving Excavator 890A with OE Numbers AR97634,AR76693-AR77772
NOTEComplete replacement turbo. Internal parts not interchangeable.
ManufacturerHoneywell-Garrett
ConditionRebuilt

Applications

2000- John Deere Agricultural Tractor 8640, 8650 with 6619A Engine

2000- John Deere Earth Moving Excavator 890A with 6619A Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
