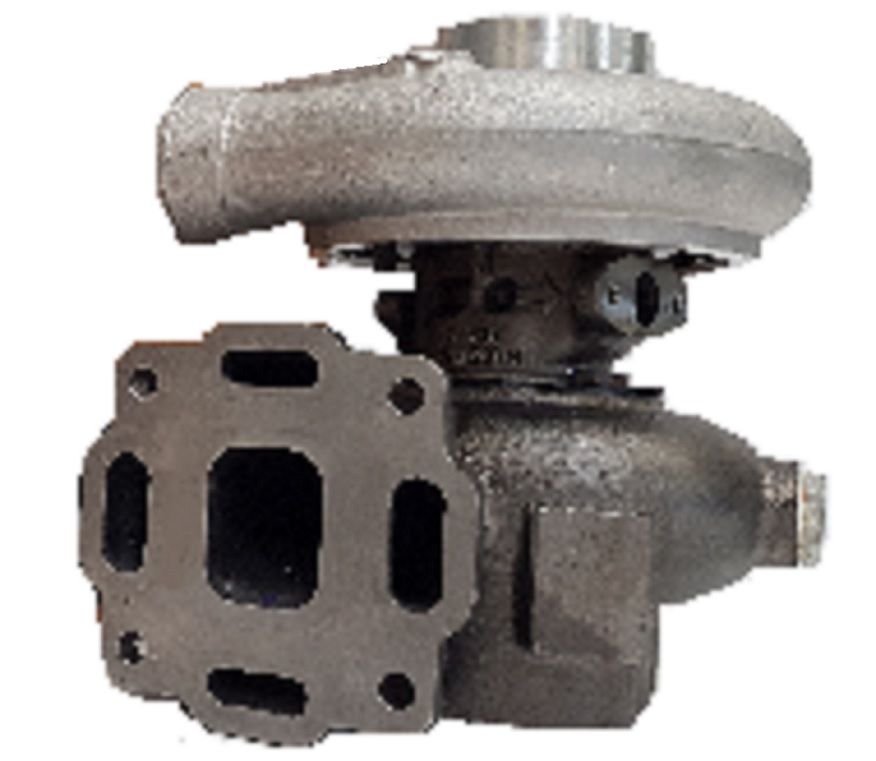

2003-08 Iveco Various Ship HX35 Turbo 4036493

Item# turbo-marine-various-TC-4036493
$1,679.20
Availability: Usually ships the next business day

Product Description


Part Number4036493
Previous Version4033616, 4033616H, 4036494
OE Number8036080
DescriptionIveco Various Ship, Excavators (KCEC)
CHRA 4027752 (4027752H) $400.00 NEW IN STOCK, MADE IN USA
Turbo ModelHX35-L7745BN/J12S5, HX35
Engine NEF
Displacement 6 Cylinders
FuelDiesel
Angle α (compressor housing)280°
Angle β (turbine housing)15°
Bearing Housing 3532630 (Oil Cooled)(1153035450) $68.00 NEW IN STOCK
Turbine Wheel3503798 (350379800)(Ind. 57. mm, Exd. 70. mm, Trm 10.9, 12 Blades) $126.40 NEW IN STOC
Comp. Wheel3599650 (Ind. 51.76 mm, Exd. 76.2 mm, Trm 43, 7+7 Blades, Superback)(1153035404) $44.52 NEW IN STOCK
Back plate3530923 (1154351300) $21.48 NEW IN STOCK
Heat shield Number3519304 (3519302)(1152301340) $12.90 NEW IN STOCK
Repair Kit3575169 (1153035750) $88.80 NEW IN STOCK
Turbine Housing (Water Cooled)4036491
Compressor Cover4036492
Gasket Kit3545769 $16.40
ManufacturerHOLSET

Applications

2003-08 Iveco Various Ship with NEF Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
