Home > Force Inductions > TURBO CHARGERS > MARINE > VOLVO PENTA > 1970- Volvo Penta Marine 3LD Turbo 54791

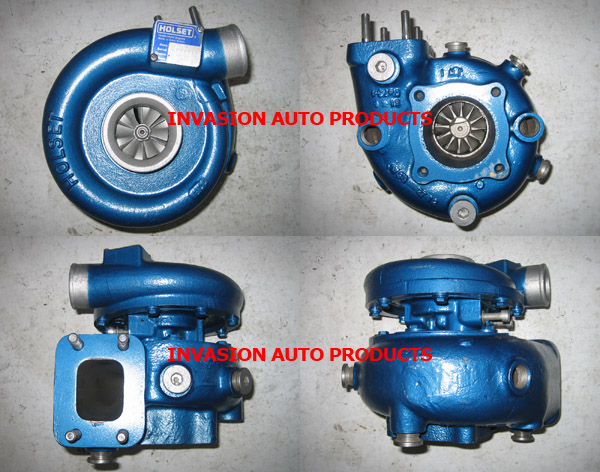

1970- Volvo Penta Marine 3LD Turbo 54791

1970- Volvo Penta Marine 3LD Turbo 54791
Item# turbo-marine-volvo-penta-TC-54791
$2,890.58
Availability: Usually ships the next business day

Product Description


Part Number54791
Previous Version54218, 3802005, 3802006, 54795
OE numberDONN6K682A, 843663, 842317, 843976, 837555, 837513, 412994
DescriptionFord Marine
CHRA54971 (57621, 54931)(842832) $1290.00 NEW IN STOCK
Turbo Model 3LD-97/0.87, 3LD530A/2.50W
EngineTAMD60A, TAMD60, TAMD70B, TAMD70C, 2704 ET
Displacement 6.7L, 6700 ccm
Fuel Diesel
Engine Manufacturer Volvo Penta
Serial HO249419
Angle α (compressor housing)45º
Angle β (turbine housing)315°
Bearing Housing51710 (58226, 146599, 146580, 158979, 143029-0000)(Oil Cooled)(1250403450) $191.67 NEW IN STOCK
Turbine Wheel55791 (144083, 149403, 156689, 156656)(842061)(Ind. 60.98 mm, Exd. 75.55 mm, Trm 9.12, 12 Blades)(1250403435) $239.72 NEW IN STOCK
Rotor Assembly (842832)
Comp. Wheel57621 (842061)(Ind. 50.22 mm, Exd. 76.17 mm, 6+6 Blades, Flatback)
Back plate51135 (197651, 5S4556, 142066, 49162-22500, 52321523000, 52321523001, 143044-0000)(1250403435, 1800016004) $19.50 NEW IN STOCK
Heat shield Number187517 $14.00 NEW IN STOCK
Repair Kit 3545654 (3545655)(842836)(1150403754) $125.00 NEW IN STOCK
Turbine Housing (Water Cooled) Out of production
Compressor Cover 420466 Out of production
Turbine Housing AR 2.5
Plug842064
Gasket (turbine inlet)421324 Replaced by 420618
Gasket (oil inlet)420475 Replaced by 420641
Gasket (oil outlet)420423 Replaced by 470993
Replaced by843663, 842317, 843976
ManufacturerHOLSET

Applications

1970- Volvo Penta Marine Diesel with TAMD60, TAMD70B, TAMD70C Engine

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
