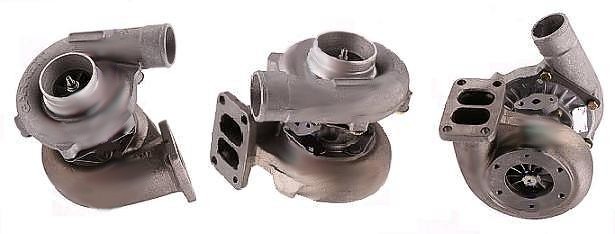

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)Volvo F85, F6S, F6 Truck, B6, F6S Truck T04B46 Turbo 465600-0003
Product Description
| Part Number | 465600-5003S |
| Previous Version | 465600-0001, 465600-0002, 465600-0003, 465600-0004 |
| OE number | 310371, 465253, 465254, 465255, 843509 |
| Description | Industrial, Truck F85, F6S, F6 Truck, B6, F6S |
| CHRA | 408105-0063 (408105-5063S)(310280A, 465361, 3545888) $300.00 NEW IN STOCK, MADE IN USA |
| Turbo Model | T04B46 |
| Engine | TD60, TD60A, TD60B, TD60C |
| KW | 133/178 |
| RPM Max | 2800 |
| Displacement | 5.48L, 5480 ccm, 6 Cylinders |
| Fuel | Diesel |
| Angle α (compressor housing) | 252.5° |
| Angle β (turbine housing) | 3185° |
| Bearing Housing | 430027-0025 (312379, 407285-0027, 407285-0038, 407285-0064, 430027-0022, 430027-0048)(Oil Cooled)(1900011104B) $69.00 NEW IN STOCK |
| Turbine Wheel | 451309-0002 (317640, 407276-0005, 410188-0002, 410188-0005, 410188-0014, 446249-0004, 446905-0001)(Ind. 74.29 mm, Exd. 58.29 mm, Trm 9.19, 11 Blades)(1100030024) $105.00 NEW IN STOCK |
| Comp. Wheel | 409179-0018 (Ind. 48.38 mm, Exd. 70. mm, Trm 6.96, 8+8 Blades, Flatback)(1200020110) $39.00 NEW IN STOCK |
| Back plate | 408045-0051 (311708, 312576, 408045-0034, 408045-0035)(1300016009) $40.00 NEW IN STOCK |
| Heat shield Number | 409299-0001 (311607, 409299-0000) $15.70 NEW IN STOCK |
| Repair Kit | 468100-0000 (3524796, 168984, 310063, 188006-0000)(1100040760, 5000010041) $69.60 NEW IN STOCK |
| Turbine Housing | 408102-0022 (310230) |
| Compressor Cover | 408566-0008 |
| Turbine Housing AR | 1.00 |
| Gasket Kit | 215133 (2090505007) |
| Gasket (turbine inlet) | 409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(Stainless Steel) $13.52 |
| Gasket (turbine outlet) | 409196-0001 (Stainless Steel) |
| Gasket oil inlet | 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) $4.48 |
| Gasket (oil outlet) | 210021 (5264569, 148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32 |
| Manufacturer | Honeywell-Garrett |
Volvo Truck F85, F6S, F6 Truck, B6, F6S with TD60, TD60A, TD60B, TD60C Engine Volvo Industrial with TD60 Engine There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
