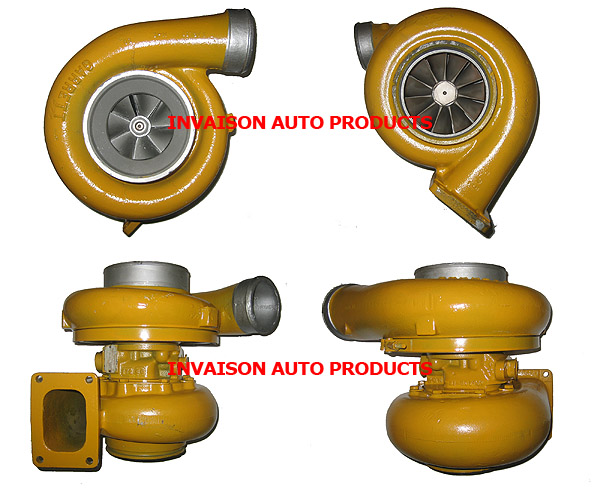

Waukesha Industrial TV9406 Turbo 465329-0006

Waukesha Industrial TV9406 Turbo 465329-0006
Item# turbo-industrial-waukesha-TC-4653290006
$1,935.25
Availability: Usually ships the next business day

Product Description


Part Number 465329-5006S
Previous Version465329-0001, 465329-0006, 701100-0002, 701100-0009, 465329-6
OE Number 211391B 211391H, 211391P, 211391U, X6X5007
Description Industrial Engine
CHRA452670-0006 (452670-5006S, 452670-0012, 431922-0019) $1,366.79 NEW IN STOCK
Turbo Model TV9406, UTV9406
Engine Model L7042 GL, F3521 GL
Engine Manufacturer Waukesha
Fuel Diesel
Displacement 115000 ccm, 12V Cyl
KW 1547 HP
Angle α (compressor housing)0°
Angle β (turbine housing)270°
Bearing Housing443245-0002 (451860-0002, 410301-0003)(Oil Cooled) $275.84 NEW IN STOCK
Turbine Wheel 442208-0001 (451882-0006)(Ind. 106.8 mm, Exd. 129. mm, Trm 19.35, 11 Blades)(1100016382) $289.73 NEW IN STOCK
Comp. Wheel441813-0004 (451883-0009)(Ind. 91.5 mm, Exd. 141.02 mm, 7+7 Blades, Superback) $319.73 NEW IN STOCK
Back plate408487-0042 (452668-0001)(489019, 109-3481) $189.00 NEW IN STOCK
Heat shield Number407566-0001 (407566-0003)(23507343) $261.94 NEW IN STOCK
Repair Kit705731-0001 (468416-0000) $189.00 NEW IN STOCK
Turbine Housing407738-0025 $558.04
Comp Housing443568-0013
Turbine Housing AR1.5
Gasket (turbine inlet)409038-0001 (409038-0000, 1S4295, 132040, 205396, 202873, 3500683, 1215736, 210017-0000, 210835-0000, 9749)(1900000003) $15.49
Gasket oil inlet210019 (409266-0004, 210019-0000, 201049, 129119, 409267-0002, 409266-0003)(Paper)(1900000035) $4.40
Gasket (oil outlet)210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) $4.38
Replaced By701100-0009
ManufacturerHoneywell-Garrett

Applications

Waukesha Industrial 115000 with L7042 GL Engine

Waukesha Industrial 58000 with F3521 GL Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
