Home > Force Inductions > TURBO CHARGERS > INDUSTRIAL > WAUKESHA > Waukesha Industrial TV9407 Turbo 466035-0002

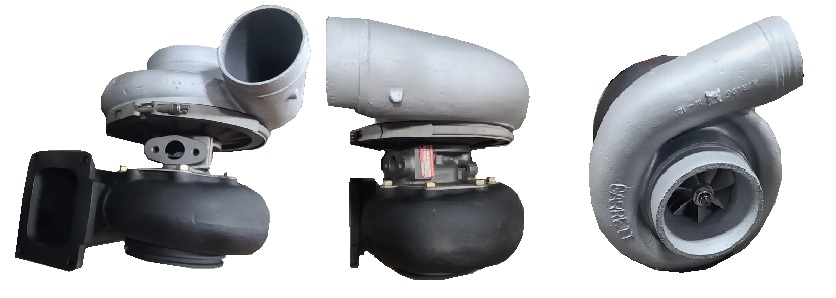

Waukesha Industrial TV9407 Turbo 466035-0002

Item# turbo-industrial-waukesha-TC-4660350002
$2,800.00
Availability: Usually ships the next business day

Product Description


Part Number466035-5002S
Previous Version466035-0002, 466035-9002S, 466035-2
OE Number 211009C
DescriptionIndustrial
CHRA431922-0018 (700147-5002S, 700147-0002, 410349-0015, 410349-0033, 0R6800, 0R7158, 102-0292, 1020292) $1306.00 NEW IN STOCK, MADE IN USA
Turbo Model TV9407
Engine ModelL7042 GL, F3521 GL, L7042GL, F3521GL, F3521GSI
Displacement5.8/11.5L, 58000/115000 ccm, 6L/12V Cylinders
KW773/1547
Engine Manufacturer Waukesha
FuelDiesel
Angle α (compressor housing)270°
Angle β (turbine housing) 0°
Bearing Housing 443245-0001 (410301-0002)(Oil Cooled) $292.15 NEW IN STOCK
Turbine Wheel442208-0001 (23503611, 4W1223)(Ind. 106.8 mm, Exd. 129. mm, Trm 19.35, 11 Blades)(1101094435) $621.07 NEW IN STOCK
Comp. Wheel441813-0007 (7E0478, 23503609)(Ind. 93.8 mm, Exd. 141.3 mm, Trm 9.65, 7+7 Blades, Superback) $133.01 NEW IN STOCK
Back plate 408487-0042 (109-3481, 489019) $194.00 NEW IN STOCK
Heat shield Number 410370-0007 (410370-0005)(190-0388, 4W1329) $168.09 NEW IN STOCK
Repair Kit468416-0000 (707899-0001) $112.40 NEW IN STOCK
Turbine Housing443115-0002 $559.04
Compressor Cover446444-0001
Turbine Housing AR1.32
Gasket (turbine inlet)409038-0001 (210835-0000, 132040, 3500683, 205396, 202873, 1S4295, 9749, 409038-0000, 210017-0000, 7M7273)(1900000003) $14.92
Gasket oil inlet210019 (409266-0004, 201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 129119)(Paper)(1900000035) $4.40
Gasket (oil outlet)210018 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763, 129120)(Paper)(1900000025) $4.22
Replaced By466556-0002
ManufacturerHoneywell-Garrett

Applications

Waukesha Industrial 115000 with L7042 GL Engine

Waukesha Industrial 58000 with F3521 GL Engine

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
