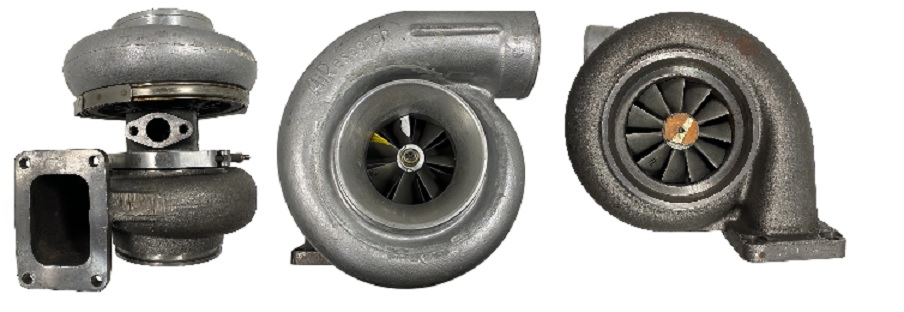

Waukesha Industrial TV8130 Turbo 465255-0002

Item# turbo-industrial-waukesha-TC-4652550002
$2,190.00
Availability: Usually ships the next business day
Currently Out of Stock. Call for information.

Product Description


Part Number465255-5002S
Previous Version465255-0002, 465255-9002, 465255-2
OE Number 305347C
Description Industrial
CHRA408742-0049 (408742-5049S, 408742-0046) $1100.00
Turbo Model TV8130
Engine Model H24 GL
Engine Manufacturer Waukesha
Displacement24.00L, 24000 ccm, V16 Cylinders
KW585
Fuel Diesel
Angle α (compressor housing)0°
Angle β (turbine housing)0°
Bearing Housing 408495-0023 (9N2035)(Oil Cooled) $145.26 NEW IN STOCK
Turbine Wheel408492-0021 (9N2043)(408492-0014, 408492-0017, 408492-0028)(Ind. 111.40 mm, Exd. 97.10 mm, Trm 15.97, 11 Blades)(1101081435, 1100020188) $280.30 NEW IN STOCK
Comp. Wheel441831-0001 (23501536, 23508862)(441831-0009)(Ind. 85.38 mm, Exd. 117.6 mm, Trm 56/55, 7+7 Blades, Superback) $245.12 NEW IN STOCK
Back plate408487-0014 (409629-0012) $165.29 NEW IN STOCK
Heatshield / Shroud407657-0004 (409794-0000, 180121-0000)(9N2037, 9N3701, 8925757)(1101680340) $22.00 NEW IN STOCK
Repair Kit468211-0000 (23513074, 3316468211) $91.20 NEW STOCK
Turbine Housing408499-0044 (1W6553) $528.33
Compressor Cover441880-0010
Turbine Housing AR1.23
Gasket (turbine inlet) 409038-0001 (409038-0000, 132040, 202873, 205396, 9749, 1S4295, 3500683, 210017-0000, 210835-0000, 7M7273)(Inox Steel)(1900000003) $14.02
Gasket oil inlet129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035) $4.40
Gasket (oil outlet)210018 (129120, 157602, 201048, 3037537, 3519763, 210018-0000)(1900000025) $3.22
ManufacturerHoneywell-Garrett

Applications

Waukesha Industrial 24000 with H24GL Engine

Core Charge

There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
