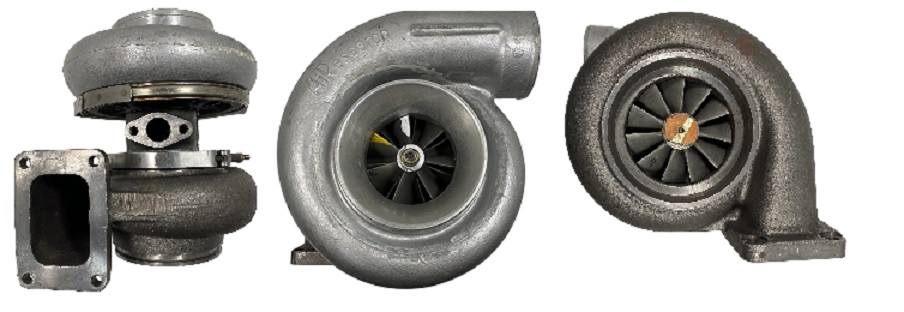

Waukesha Industrial TV8130 Turbo 465255-0003

Item# turbo-industrial-waukesha-TC-465255-0003
$1,980.00
Availability: Usually ships the next business day

Product Description


Part Number 465255-5003S
Previous Version465255-0003, 465255-3
OE Number 305347
Description Industrial
CHRA408742-0049 (408742-5049S, 408742-0046) $1100.00
Turbo Model TV8130
Engine Manufacturer Waukesha
Fuel Diesel
Angle α (compressor housing) 0º
Angle β (turbine housing) 0º
Bearing Housing 408495-0023 (9N2035)(Oil Cooled) $145.26 NEW IN STOCK
Turbine Wheel408492-0021 (9N2043)(408492-0014, 408492-0017, 408492-0028)(Ind. 111.40 mm, Exd. 97.10 mm, Trm 15.97, 11 Blades)(1101081435, 1100020188) $280.30 NEW IN STOCK
Comp. Wheel441831-0001 (23501536, 23508862)(441831-0009)(Ind. 85.38 mm, Exd. 117.6 mm, Trm 56/55, 7+7 Blades, Superback) $245.12 NEW IN STOCK
Back plate408487-0014 (409629-0012) $165.29 NEW IN STOCK
Heatshield / Shroud407657-0004 (409794-0000, 180121-0000)(9N2037, 9N3701, 8925757)(1101680340) $22.00 NEW IN STOCK
Repair Kit468211-0000 (23513074, 3316468211) $91.20 NEW STOCK
Turbine Housing408804-0036 (1W3438)
Compressor Cover441880-0012
Turbine Housing AR1.79
Gasket (turbine inlet) 409038-0001 (409038-0000, 132040, 202873, 205396, 9749, 1S4295, 3500683, 210017-0000, 210835-0000, 7M7273)(Inox Steel)(1900000003) $14.02
Gasket oil inlet129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035) $4.40
Gasket (oil outlet)210018 (129120, 157602, 201048, 3037537, 3519763, 210018-0000)(1900000025) $3.22
ManufacturerHoneywell-Garrett

Applications

Waukesha Industrial

Core Charge

There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
