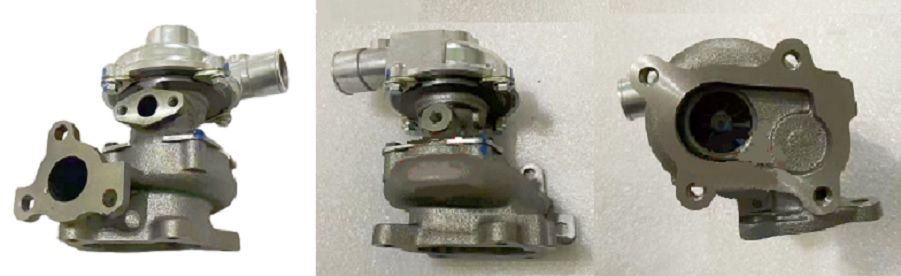

Yanmar Industrial Engine, Marine, Construction RHB51 Turbo VA180025 CY55

Item# turbo-Industrial-yanmar-TC-VA180025
$1,549.00
Availability: Usually ships the next business day

Product Description


Part NumberVA180025
Previous VersionNB150029, VB180025, VC180025, VD180025
OE Number12940418020, 129404-18020, 1-29404-18020, B52CAD-S0025B, B52CADS0025B
V-SPEC.CY55
Description Yanmar Industrial Engine, Generator, Marine, Construction
Turbo ModelRHB51, RHB51-3400IP12NFBRL338CZ
CHRA N/A
Engine ManufacturerYanmar
Engine4TNE84T, 4TNE84T-SA, 4TNE84T-G1A, 4TNE84T-G2A, 4TN82TL-VM
FuelDiesel
Angle α (compressor housing) 180°
Angle β (turbine housing) 110/105°
Bearing Housing(129404-18800)(Oil Cooled) $184.37 NEW IN STOCK
Turbine Wheel NB131180 $98.00 NEW IN STOCK
Rotor Assembly(129404-18770) $452.11
Comp. Wheel IN STOCK
Back plateNN133021 (64T-002)(129404-18820)(1450052300) $14.12 NEW IN STOCK
Heat shield NumberNH365303 (NB137143, NN137055)(38T-013)(129403-18720) $10.25 NEW IN STOCK
Repair KitNN139921 (NN139922)(509T-530, 509T-545)(129404-18830) $89.00 NEW IN STOCK
Turbine Housing129404-18790
Compressor Cover129404-18780
Actuator129404-18811
Turbine Housing AR 12
Gasket (turbine outlet)129403-18080 (129403-18081)
Gasket (turbine inlet)129322-18100
ManufacturerIHI-Clover

Applications

Yanmar Industrial Engine, Marine Engine 4TNE84T

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.
