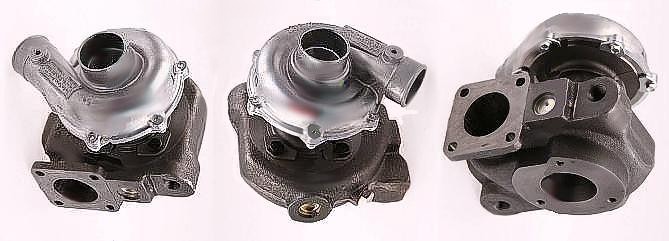

1991-99 Yanmar Marine RHB52W Turbo VA180097 MYAZ

1991-99 Yanmar Marine RHB52W Turbo VA180097 MYAZ
Item# turbo-marine-yanmar-TC-VA180097
$1,952.40
Availability: Usually ships the next business day

Product Description


Part NumberVA180097
Previous VersionV-180097, V180097, VB180097, VC180097, VD180097
Year 1991-99
OE number 12957418000, 129574-18000, 1-29574-18000, B52CND-S0097B, B52CNDS0097B
V-SPEC. MYAZ
DescriptionMarine
CHRANZ853146 (B51CND-S0085C, B51CNDS0085C) $350.00 NEW IN STOCK, MADE IN USA
Turbo ModelRHB52W-52002HP15NWBRL3611CE
Engine4JH2-DTE, 4JH2UTE
Power:100 HP
FuelDiesel
Angle α (compressor housing)90°
Angle β (turbine housing) 218°
Bearing Housing NN133382 (053T-520, NN133378, NN133362)(Oil Cooled)(1900011187) $92.50 NEW IN STOCK
Turbine WheelNN131502 (NN161312, NN131614, 223T-515)(Ind. 52.47 mm, Exd. 43.05 mm, Trm 8, 9 Blades)(1100016018) $117.00 NEW IN STOCK
Comp. WheelNN136613 (Ind. 36. mm, Exd. 52.13 mm, 6+6 Blades)
Back plateNN133021 (NN133001) (64T-002) $44.50 NEW IN STOCK
Heat shield NumberNN137055 (38T-013) $12.25 NEW IN STOCK
Repair KitNN139922 (NN139921)(2445041, 2445092, 509T-545) $68.00 NEW IN STOCK
Turbine Housing (Water-Cooled)NN139604
Compressor CoverNN133911
Turbine Housing AR15
Gasket (turbine Inlet)210276 (2445051) (Inox Steel)
Gasket (turbine outlet)210828 (Inox Steel)
Gasket (oil outlet)210636 (2445067)(Paper) $3.21
Gasket Kit215334 $60.68
ManufacturerIHI

Applications

1991-99 Yanmar Marine with 4JH2-DTE, 4JH2-UTE Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
