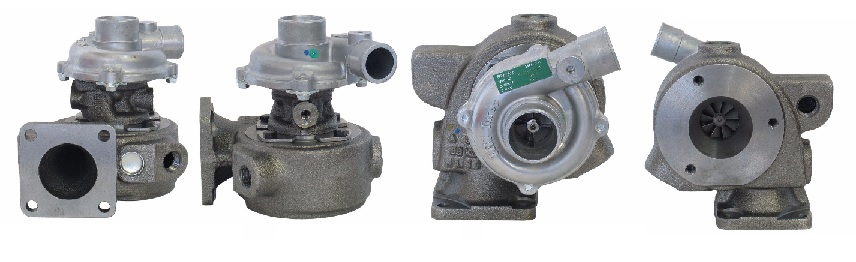

Yanmar Marine RHB31GW Turbo VB110073 MY69

Yanmar Marine RHB31GW Turbo VB110073 MY69
Item# turbo-marine-yanmar-TC-VB110073
$1,816.76
Availability: Usually ships the next business day

Product Description


Part NumberVB110073
Previous versionsVA110073, VC110073, VD110073
OE number12957918010, 129579-18010, B31CND-S0073B, B31CNDS0073B, B31CND-S0073BN
Kohler.229309
V-Spec.MY69
DescriptionMarine, GEN Set
CHRANZ852836 (NZ852215, NZ870544, B31CND-S0073C, B31CNDS0073C) $395.00 NEW IN STOCK
Turbo Model RHB31GW-50001GP7NWBRS255A
Engine 4JHLHTE-K2
Angle α (compressor housing) 90°
Angle β (turbine housing) 338°
Bearing HousingNB133339 (Oil Cooled) $69.00 NEW IN STOCK
Turbine WheelNB131180 $98.00 NEW IN STOCK
Rotor Assembly(129403-18770) $376.36
Comp. WheelNB135102 (Ind. 24.8 mm, Exd. 35.5 mm, 5+5 Blades) $66.00 NEW IN STOCK
Back plateNB133011 (2445104) NEW IN STOCK
Heat shield NumberNB137143 NEW IN STOCK
Repair KitNB139837 (NB139838, NB139922)(2445058, 2445147) $123.00 NEW IN STOCK
Turbine Housing (Water-Cooled) NB137343
Compressor CoverNB134113
Turbine Housing AR7
Gasket Kit2505395 (1900100289) $18.54 NEW IN STOCK
Gasket (turbine inlet)210826 (2445288, 2445280, 129477-18100)(Inox Steel)
Gasket (turbine outlet)210827 (2445274 , 2445185,129322-18100)(Inox Steel)
Gasket (oil inlet(1203715, 1204055)(Paper)
Gasket (oil outlet)210284 (2455001, 2445107)(Paper)
ManufacturerIHI

Applications

Yanmar Marine with 4JHLHTE-K2 Engine

Core Charge

There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
